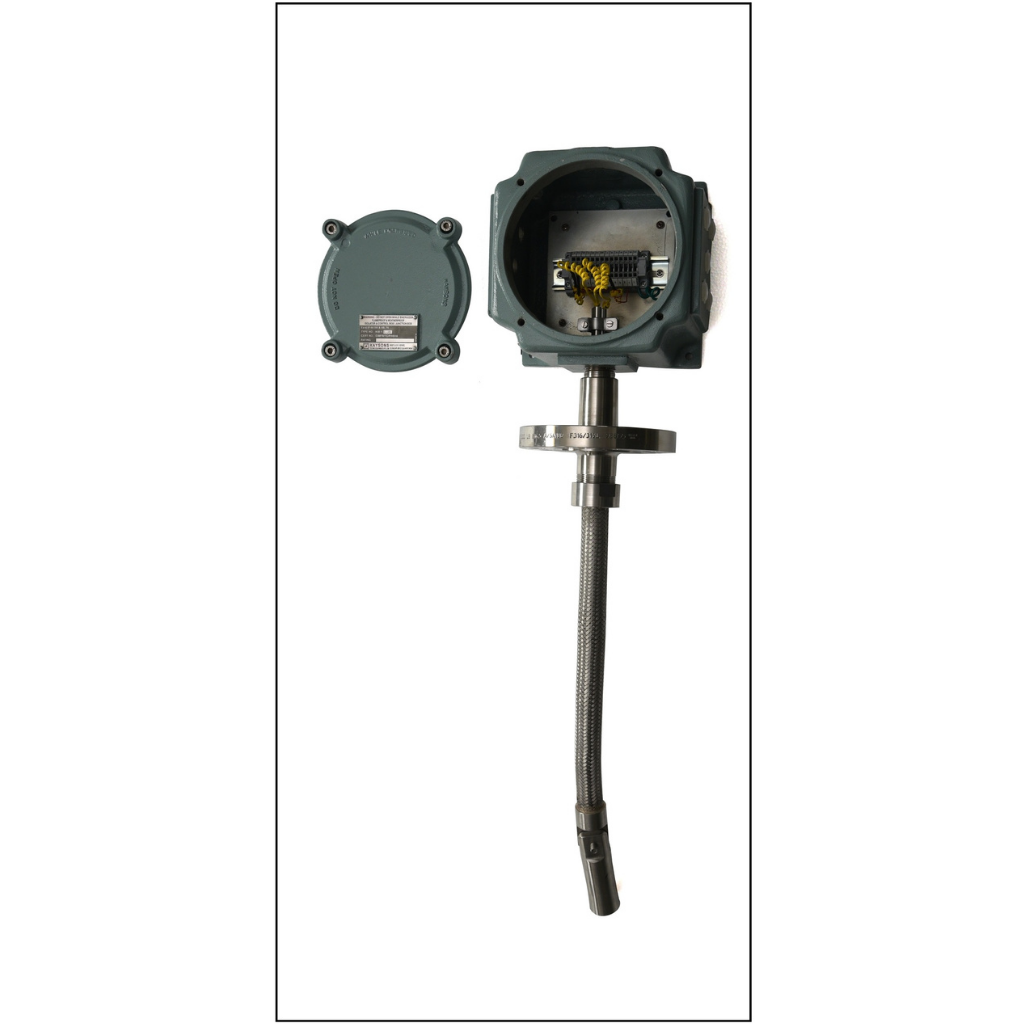

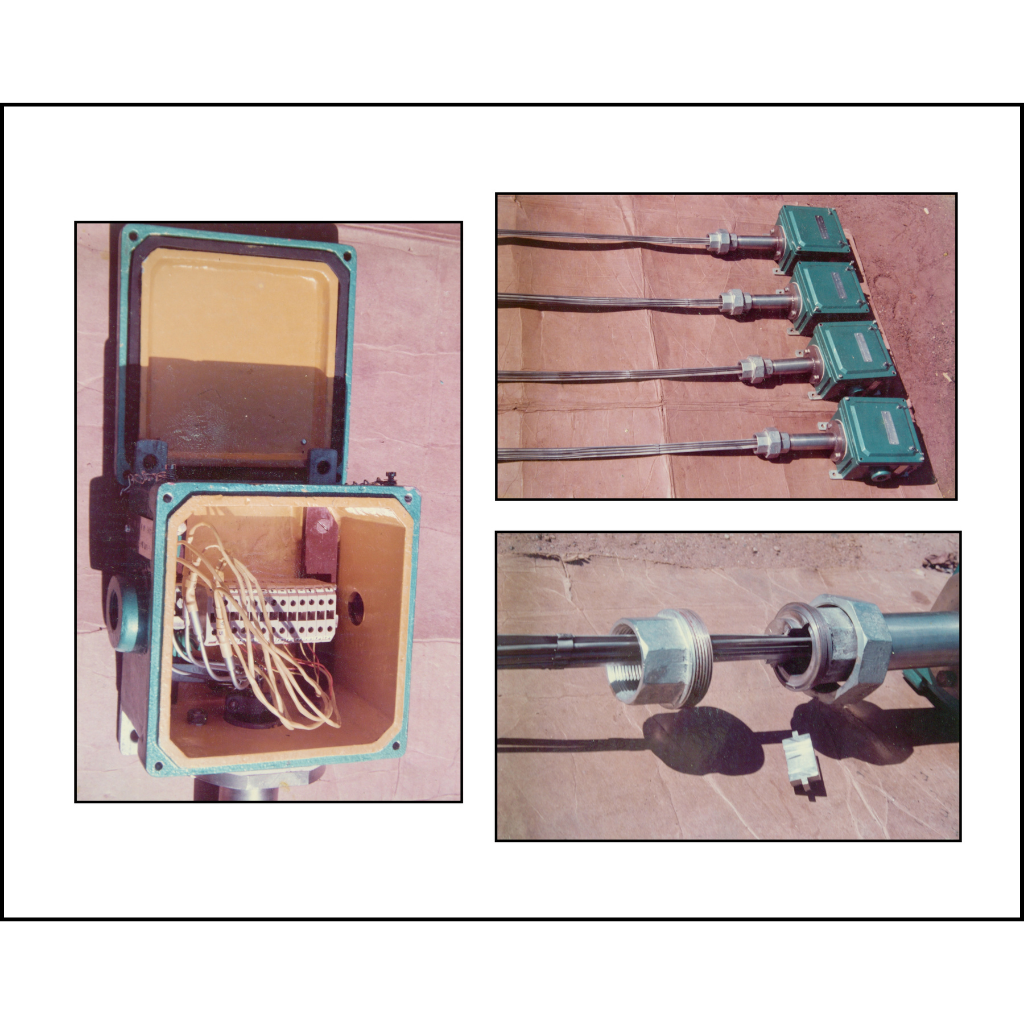

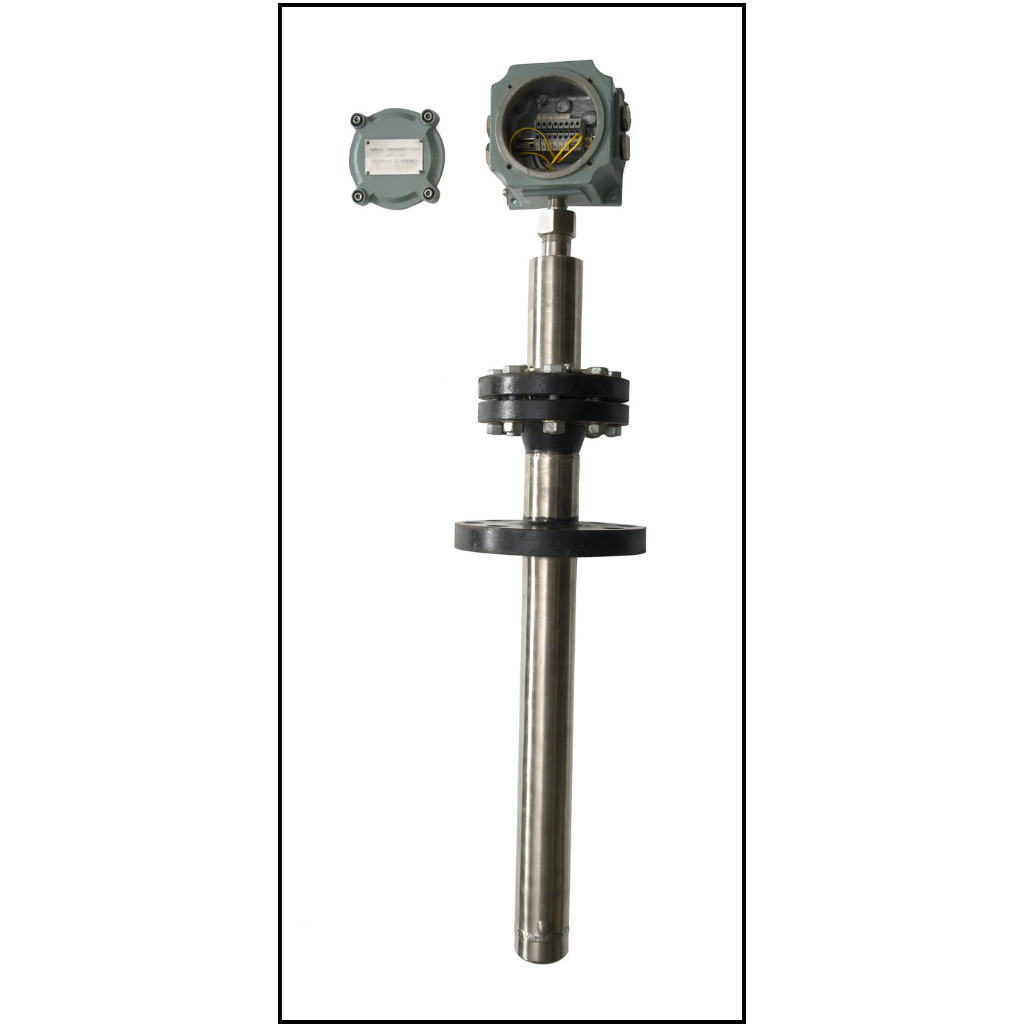

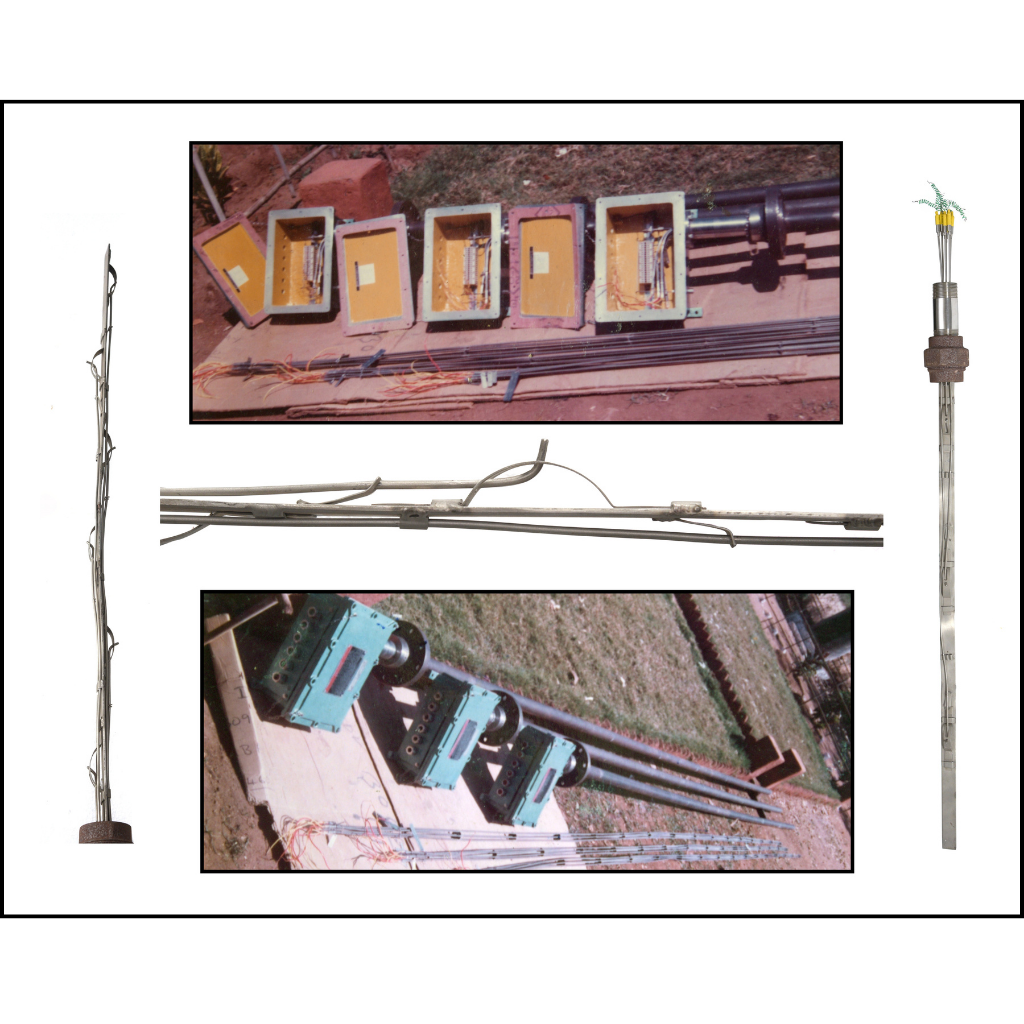

General Instruments Multipoint RTD
GIC is the leading Multipoint RTD Manufacturer providing Reliable Solutions for Accurate Temperature Measurement to Process Industry worldwide.
Where space limitations and cost consideration are of prime importance, multi-point RTD come into picture which is used for measuring and controlling the temperature in a reactor having different temperature zones Any RTD with measuring junctions located at more than a one-immersion depth is commonly referred to as a multi-point. As the number of variations possible in multi-point assemblies is virtually limitless they are Thermally designed and manufactured to meet the requirements of individual applications. As different multipoint designs vary tremendously, careful consideration should be given to such variables as the positive location of measuring junctions and the ease/cost of replacement
Routine tests:
a) Accuracy/Calibration Test
b) Nitrogen Leakage Test (Weld Closure Conformity)
c) Insulation Resistance Test
d) Thermal Response Time Test
e) Continuity Test
f) Dimension Checks
g) Helium Leakage Test
h) Pneumatic Leakage Test
i) Hydro Test
j) Dye Penetration ( LPT) test
k) Radiography Test
Features:
- Ideal for measuring temperature at various elevations
- Fully tailormade
- Proven track record in cross section of industries
- Can be offered with practically any length
- Cost effective & overcomes space limitation
- Different thermocouples with varied MOC possible.
- Construction enables user to remove thermocouple for maintenance
