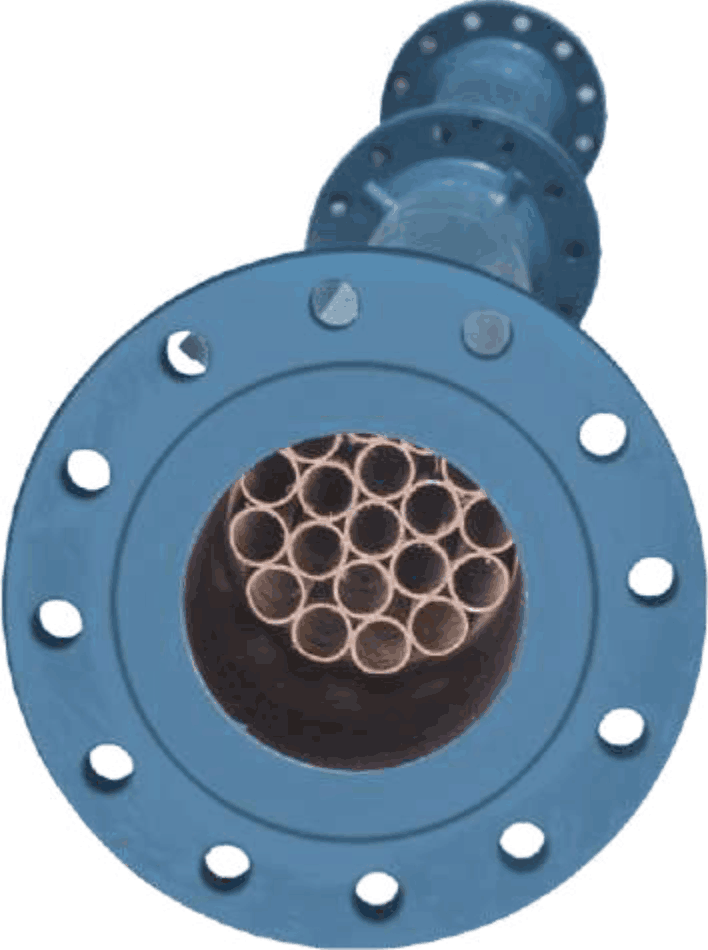

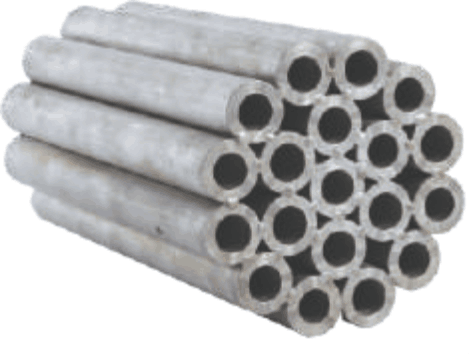

General Instruments Conditioning Plate and Flow Straightener
GIC is the leading Conditioning Plate and Flow Straightener Manufacturer in India providing reliable solutions for accurate pressure measurement to the process industry worldwide.
Flow straighteners and conditioners are used in conjunction with flow meters. They can smooth out turbulent and transitional flows and help meters measure more accurately
These are installed on the upstream side of flow elements to remove swirls resulting from a complicated piping layout, and to restore an acceptable velocity profile.
Flow conditioners are used to produce a swirl-free, distortion-free highly repeatable velocity flow profile for use in flow meter and pump systems. These eliminate the flow distortion effects of upstream elbows, pipe size changes, valves, dampeners, and more to produce a consistent flow profile for flow meters and pumps. Most flow meter technologies require significant upstream and downstream straight runs to meet and sustain their specified accuracy. Flow conditioners or flow straighteners are used to minimize these straight-run requirements.
Routine Tests:
a) Dye Penetration test
b) Hydro Test
c) Radiography Test
