Model No. G5 VMPP 1 (Remote Mounted Type)

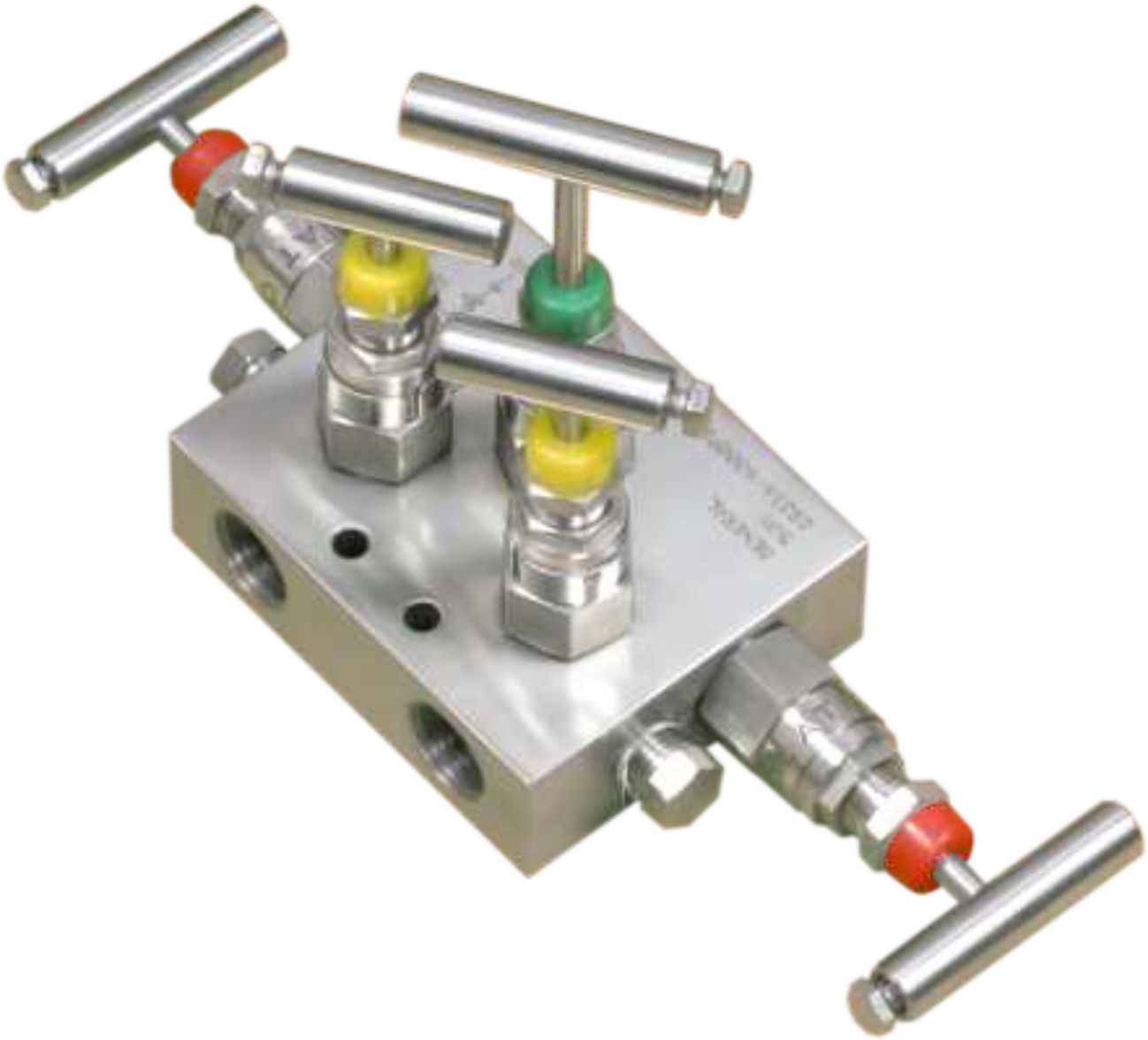

Five Valve Manifold G5 VMPP-1 incorporate two process isolation valves, one equalizer valve and two drain/vent valves with separate connections in a compact manifold block. The Model G5 VMPP-1 is designed for remote mounting away from the differential pressure instrument and joined by tube or pipe impulse lines. They have threaded connections of which the most popular are detailed below but also available to suit other sizes and standards.
Dimensions shown above are for the standard 54 mm or 2 1/8 inch instrument connection. Centre distance found in majority of instruments. The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult us for these dimensions.
Model No. G5 VMPP 2 (Remote Mounted Typeall Valve)

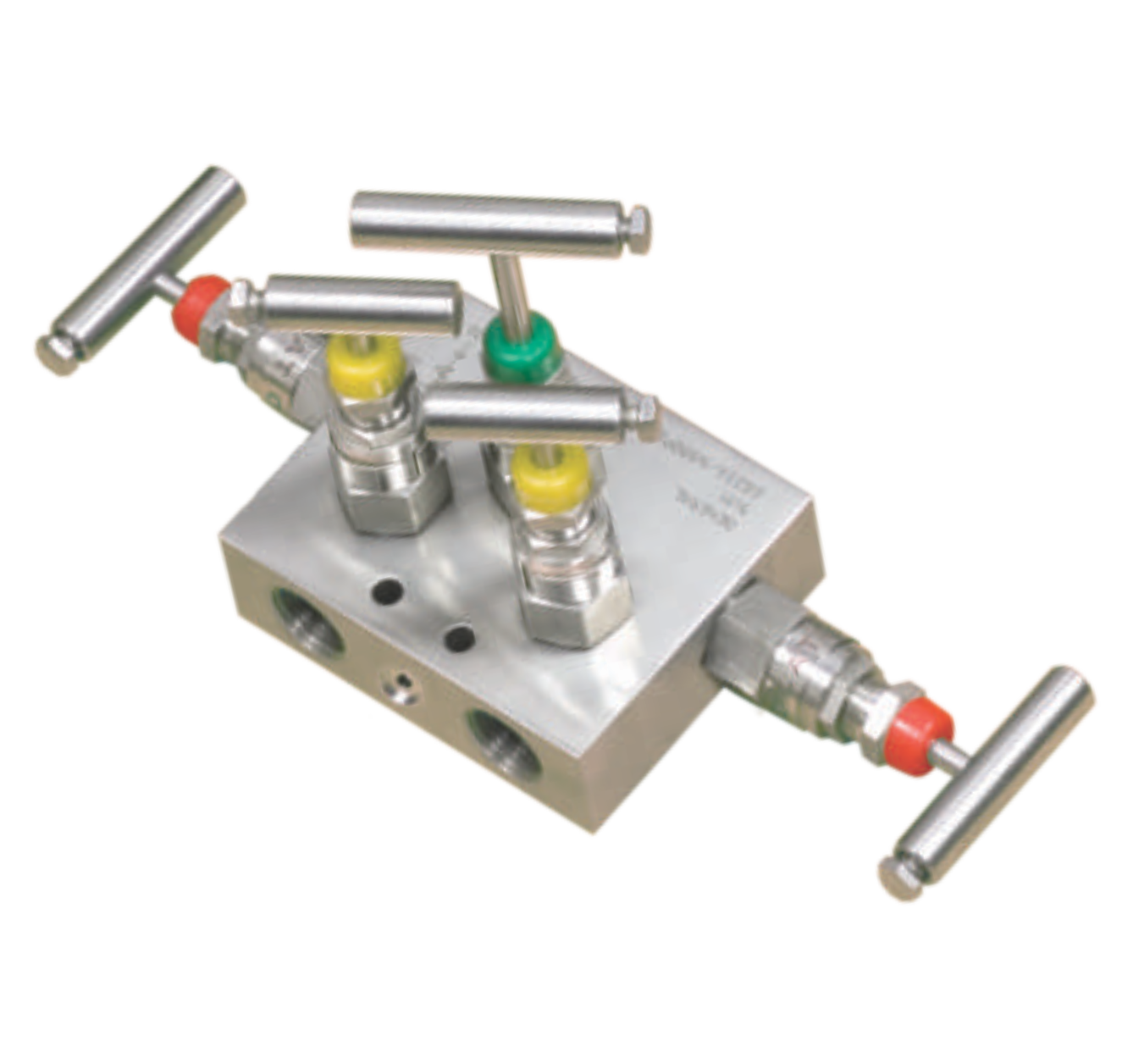

Five Valve Manifold G5 VMPP- 2 incorporate two process isolation valves, two equalizer valve and one drain/vent valve with a common drain connection in a compact manifold block. The Model G5 VMPP 2 is designed for remote mounting away from the differential pressure instrument and joined by tube or pipe impulse lines. They have threaded connections of which the most popular are detailed below but also available to suit other sizes and Standards.
Dimensions shown above are for the standard 54 mm or 2 1/8 inch instrument connection Centre distance found in majority of instruments. The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult us for these dimensions.
Model No. G5 VMPF 2 (Direct Mounting)

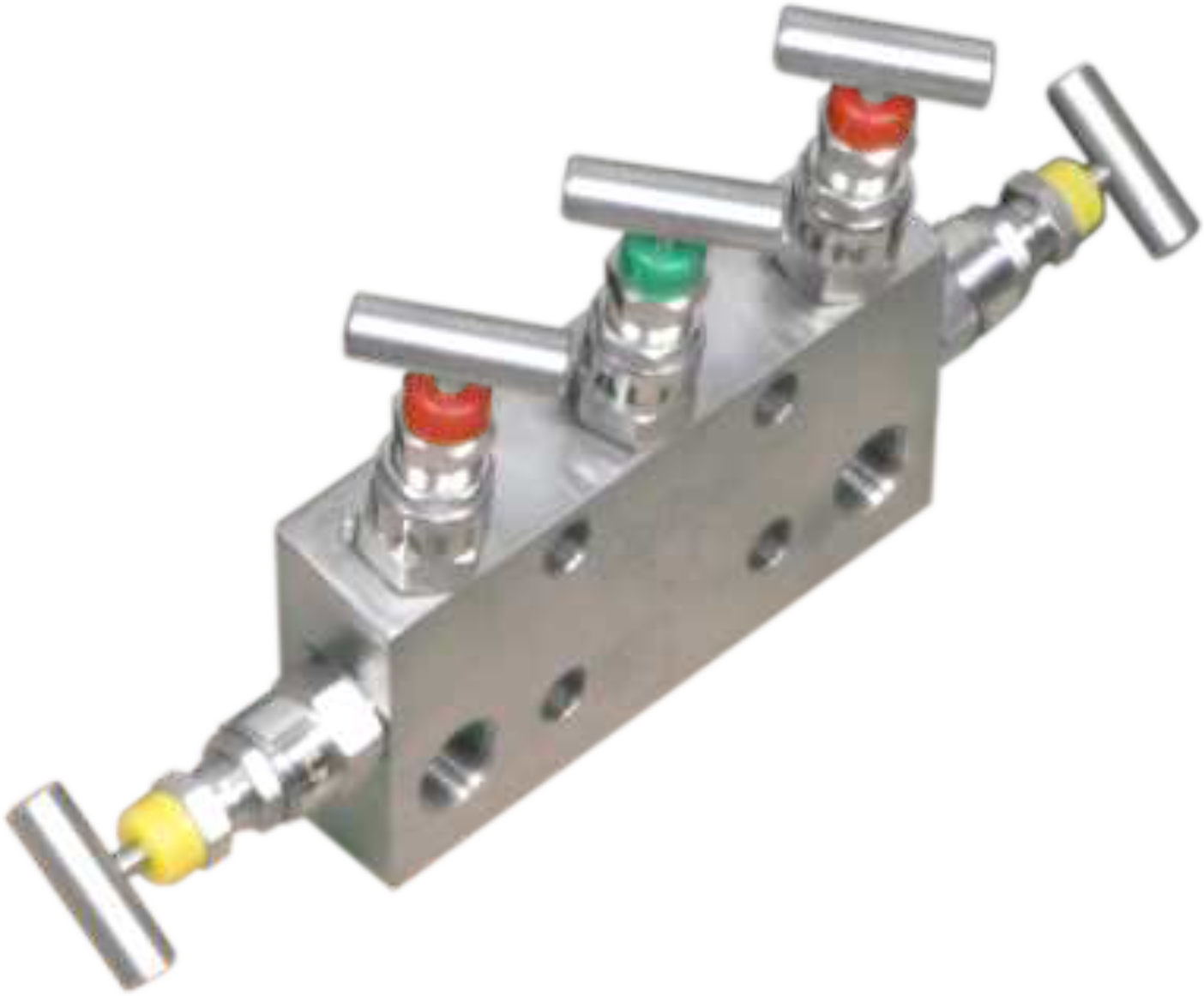

Five Valve Manifold Model G5 VMPF 2 is designed for direct mounting on differential pressure instruments. The manifold incorporates two process isolation valves, one equalizer valve and two drain/vent valves with separate connections. The process connection is through threaded connections for tube or pipe assembly. The valves are suitably angled to prevent fouling with the instrument.
Dimensions shown are for the standard 54 mm or 2 1/8 inch instrument connection centres but also available for other centres on request.
Model No. G5 VMPF 1 (Direct Mounting – T Type)
Five Valve Manifold Model “T” type Model G5 VMPF 1 is designed for direct mounting on differential pressure instruments. The manifold incorporates two process isolation valves, one equalizer valve and two drain/vent valves in a compact block. The process connection is threaded for connections by tube or pipe fittings.
Dimensions shown are for the standard 54 mm or 2 1/8 inch centres for instrument and process connections but are available for other centres on request. Thread details shown are for standard popular sizes and available to suit other thread standards.
Model No. G5 VMFF 1 (Direct Mounting – H Type)

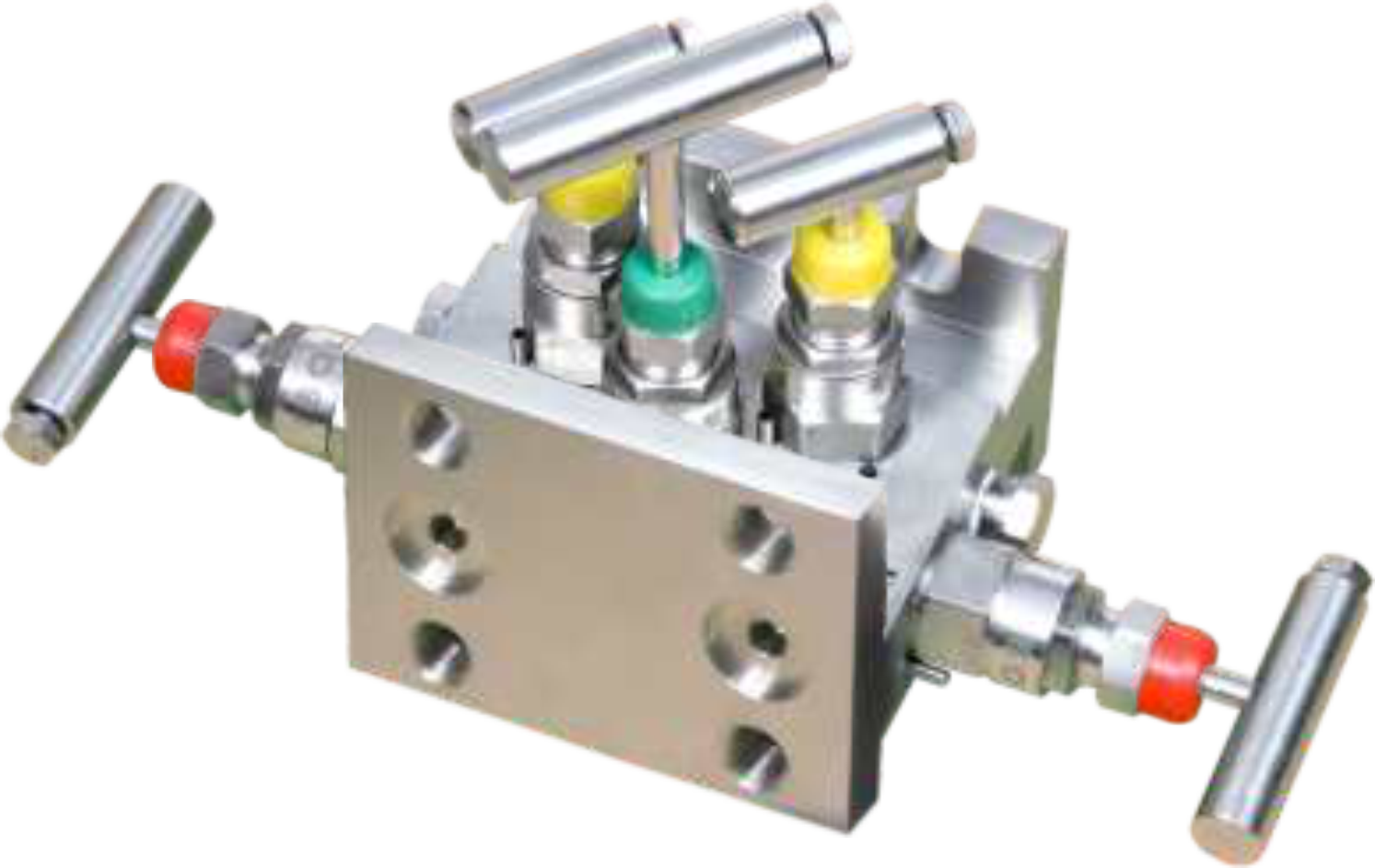

Five – Valve Manifold Model G5 VMFF 1 is designed for direct or remote mounting of differential pressure transmitters. For remote mounting two oval / kidney flanges are used for connecting process pipe to manifold block. These manifold block incorporate five valves, two main valve for process isolation valve for vent two valves for equalizing.
Dimensions shown above are for the standard 54 mm or 2 1/8 inch instrument connection Centre distance found in majority of instruments. The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult us for these dimensions. |
