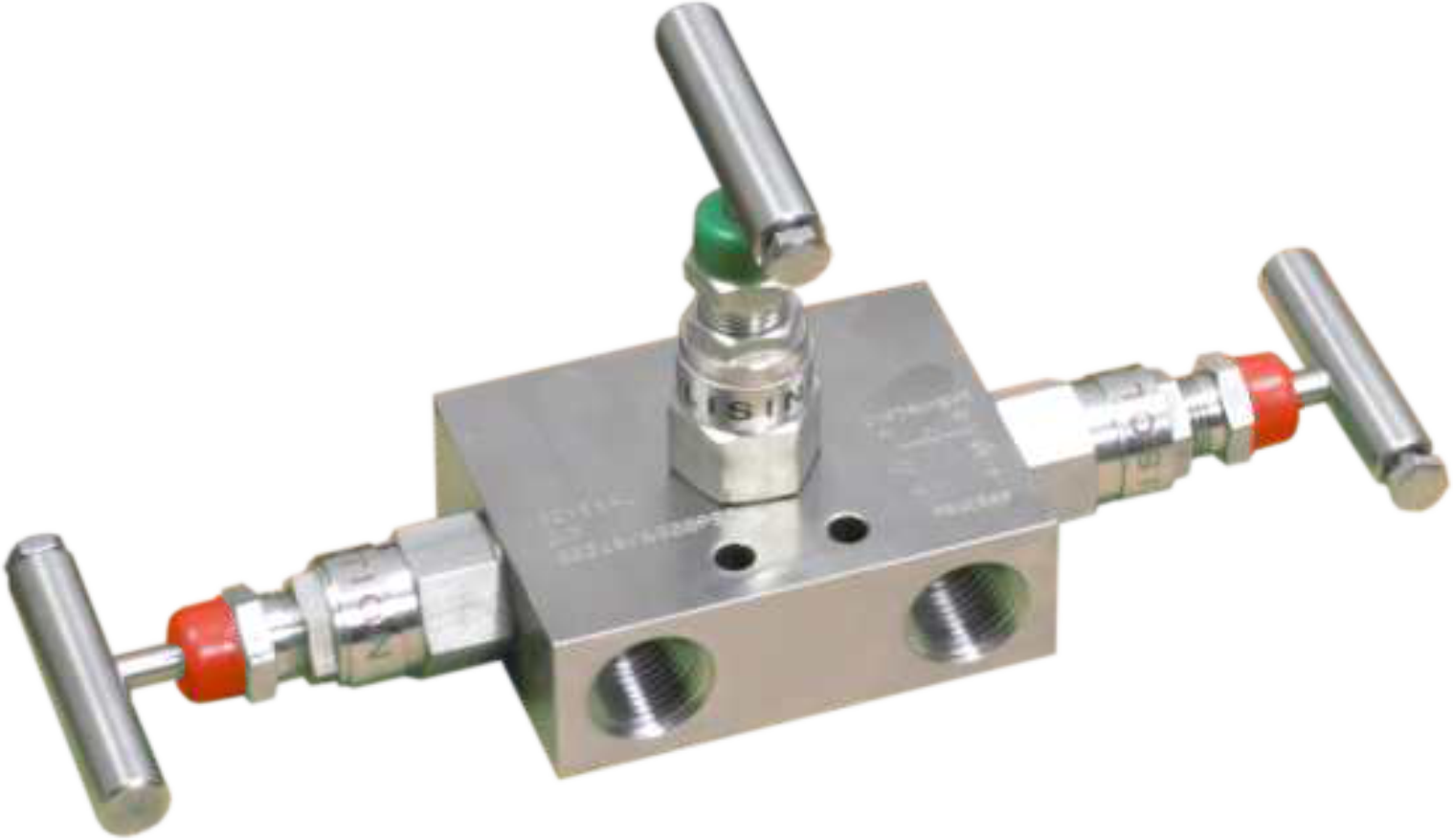

Model No. G3VMPP1 (Mounted)
Designed for applications to facilitate remote mounting of differential pressure instruments. Dimensions shown above are for the standard 54 mm or 2 1/8 inch instrument connection. Centre distance found in majority of instruments.
The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary.
Please consult us for these dimensions.
Useful for installations in remote fields eliminating conventional method of piping

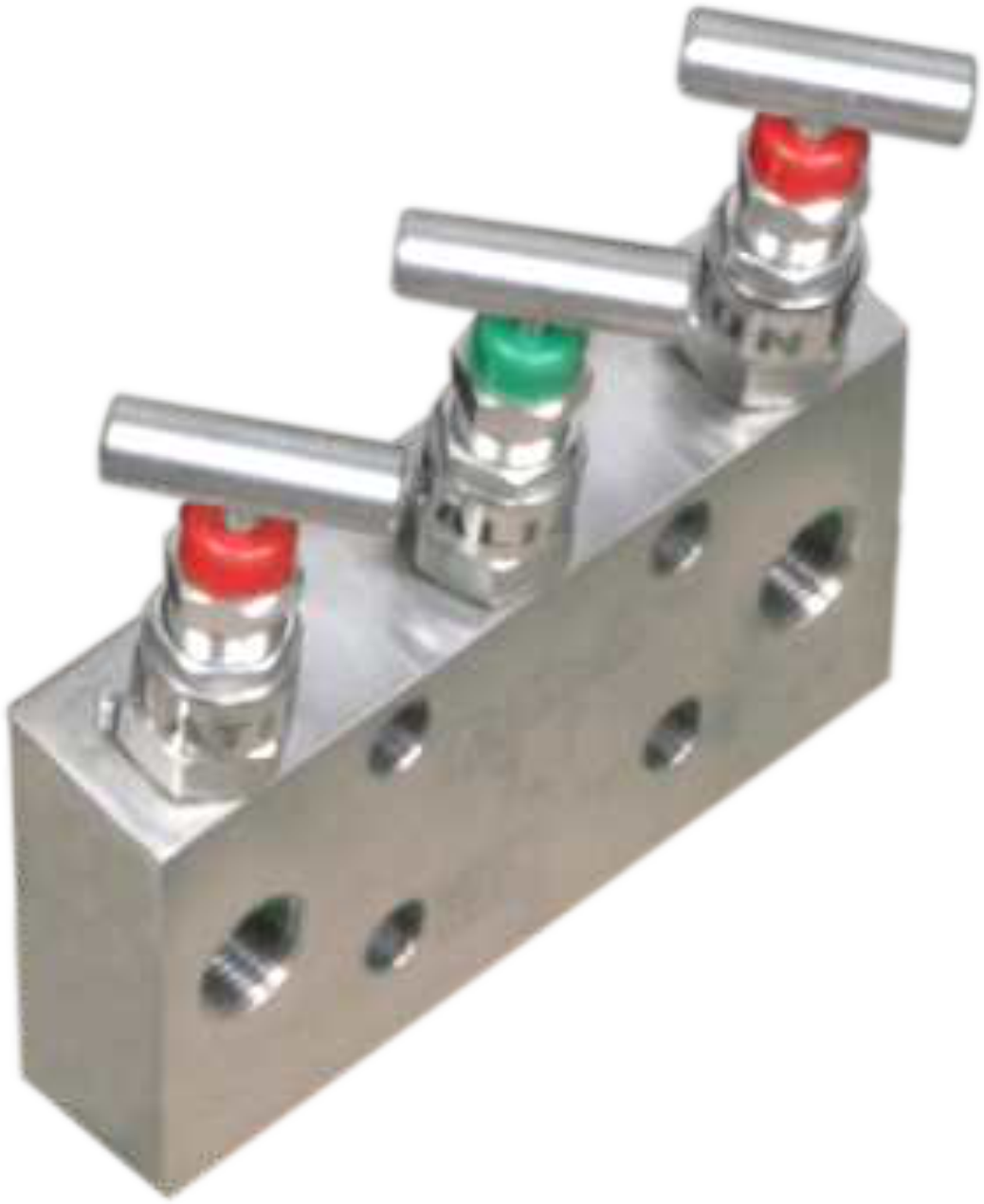

Model No. G3VMPF2 (Direct Mounting)
Designed for direct mounting on to standard differential pressure transmitters. This manifold block incorporates three valves, two main process isolation valves and one equalising valve.
This design is suitable where the straight valve may foul with the instrument and to provide ease of operation.
Dimensions shown are for the standard 54 mm or 2 1/8 inch instrument connection Centre distance found in majority of instruments.
The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult factory for these dimensions.

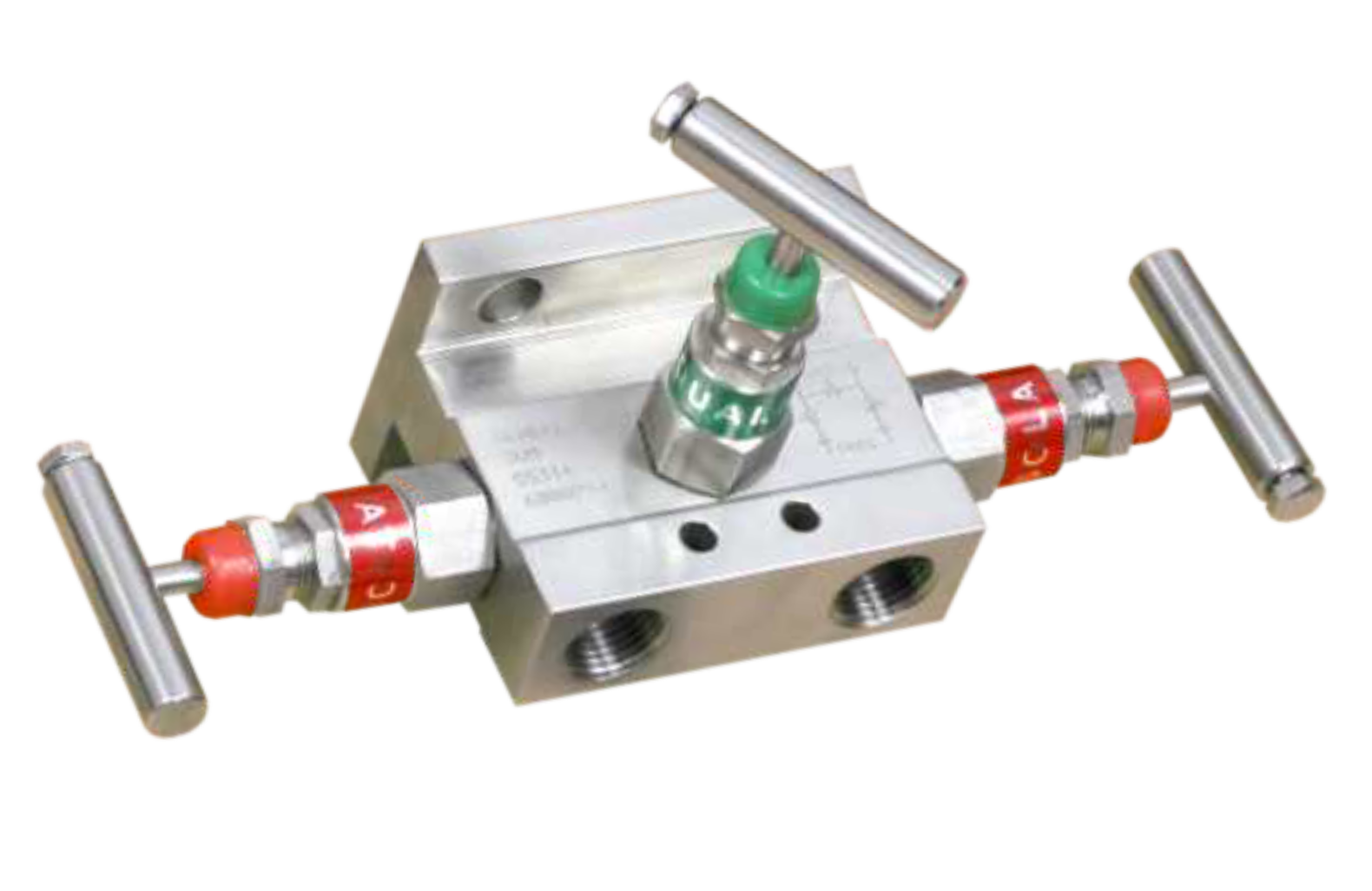

Model No. G3 VMPF1 (Direct Mounting – T Type)
Designed for direct mounting on to standard differential pressure transmitters. This manifold block incorporates three valves, two main process isolation valves and one equalising valve.
Dimensions shown are for the standard 54 mm or 2 1/8 inch instrument connection Centre distance found in majority of instruments. The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary.
Please consult us for these dimensions. Useful for installations in remote fields eliminating conventional method of piping.

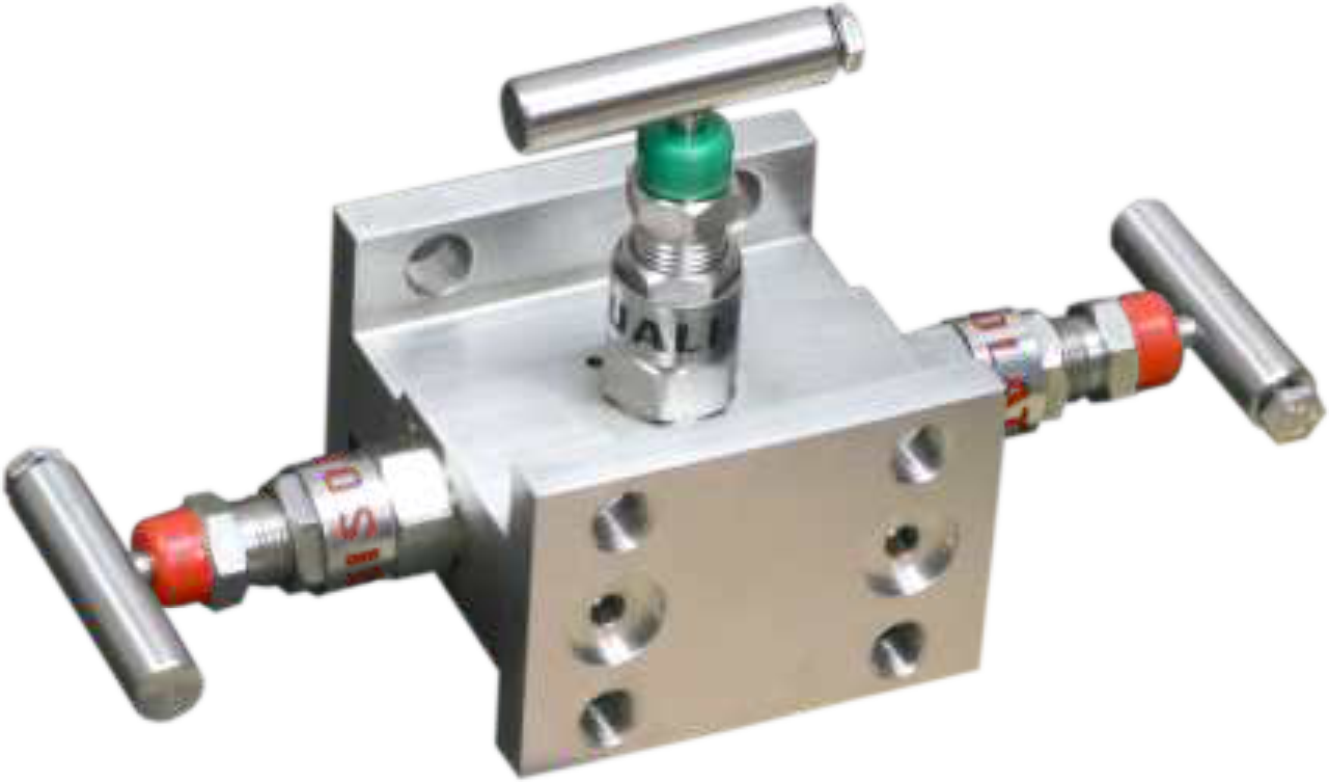

Model No. G3 VMFF1 (Direct Mounting – H Type)
Designed for direct or remote mounting of differential pressure transmitters. For remote mounting two oval / kidney flanges are used for connecting process pipe to manifold block. The manifold block incorporate two main valves for process isolation and one valve for equalizing.
Dimensions shown are for the standard 54 mm or 2 1/8 inch instrument connection Centre distance found in majority of instruments. The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary.
Please consult us for these dimensions.
Model No. G3 VMC 1 (Coplanar Mounting With Drain Plugs)
Designed as a new series of process instrument manifold for particular transmitter models. The coplanar manifold when assembled to transmitter has the advantage of compact size with ease for operation in minimum space, thereby eliminating several components in integrating the manifold to the transmitter. The coplanar manifold has two isolating valves, one equalizer valve and two vent ports duly plugged.
The manifold dimensions illustrated are for standard 54 mm or 2 1/8 inch instrument centres but available for other centres. The direct mounting facility to the base of the differential pressure transmitter results in less leakage points and more accurate measurements. |
